Mô tả

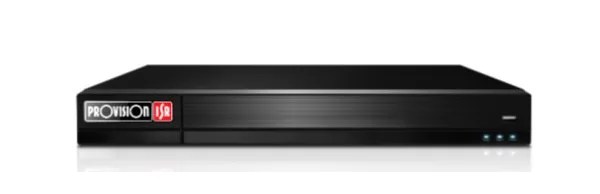

Video Decoder Provision-ISR DEC-0104(1U)
– Video Input:
o HDMIx1 (Up to 1080P)
o IPC Video Stream
– Video Output:
o HDMIx4 (2 x 4K + 2 x 1080P)
o VGA x 4
o CVBS x 4
o Each HDMI / VGA / CVBS Set is Mirrored
– Streaming Capabilities:
o Total of 144Ch (4 Monitors x 36ch per monitor)
o Max resolution: 8MP
o H.265 / H.264 Video Decoding
o G.711A / G.711U Audio Decoding
– USB Port: 1 x USB3.0, 1 x USB2.0
– Network: 2 x RJ-45 (2 x 1000Mbps)
Thông số kỹ thuật
| Model | DEC-0104(1U) |
| Display Output | 2 x HDMI (4K/1080P/1280×1024), 2 x HDMI (1080P/1280×1024) 4 x VGA (1080P/1280×1024) 4 x CVBS (Analog) |
| Display Input | 1 x HDMI (Up to 1080P) |
| Audio Output | 4 x RCA |
| Two-Way Audio | 1 x Audio input1, 1 x Audio output (3.5mm audio interface, level: 2.0Vp-p, 1KΩ) |
| LAN | 2 x 1Gbps (Load Balancing and Hot Standby) |
| USB | 1 x USB3.0 + 1 x USB2.0 |
| Alarms | 8 x Input + 8 x Output |
| Serial Ports | 1 x RS-485, 1 x RS-232 |
| Decoding Resolution | 8MP / 5MP / 4MP / 4MP / 2MP / 1MP / WD1 / D1 / CIF |
| Video Decoding Format | H.265 / H.264 |
| Audio Decoding Format | G.711A / G.711U |
| Decoding Capability (Total Viewed Channels) |
4Ch – Up to 8MP 5-16Ch – Up to 4MP 17-64Ch – D1 >64ch – CIF |
| FPS | 1~50FPS (PAL), 1-60FPS(NTSC) |
| Screen Display Modes | 1 / 4 / 9 / 16 / 25 / 36 |
| Local Decoding Capability | 144ch |
| Installation | Standard 19′ Rack Mount |
| Power | 12VDC / 2A |
| Operation Temperature | Working: -20°C ~ 50°C |
| Protection Rate | None (Indoor Installation) |
| Dimensions | 380*268*45mm |
| Net Weight | 2kg |
– Bảo hành: 24 tháng.
